Also available with optional SPRIselect® beads for clean-up and size-selection steps.
Please note that adaptors, primers, rRNA depletion reagents and poly(A) mRNA isolation reagents are not included in the kit and are available separately.
For extensive NEBNext Ultra II performance data, click the links in the Features above and download our technical note for poly(A) mRNA isolation or our technical note for rRNA depletion .
For use with NEBNext Multiplex Oligos for Illumina (Unique Dual Index UMI Adaptors RNA Set 1) (NEB #E7416 ), refer to the Protocols tab for UMI Adaptors-specific guidance.
LIBRARY YIELDS

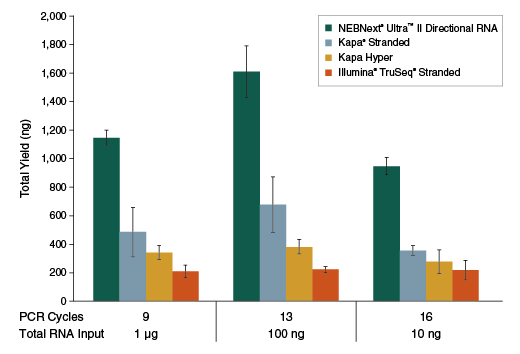

Poly(A)-containing mRNA was isolated from Human Universal Reference RNA (Agilent #740000), and libraries were made using the NEBNext Ultra II Directional RNA Kit (plus the NEBNext Poly(A) mRNA Magnetic Isolation Module), Kapa Stranded mRNA-Seq Kit, Kapa mRNA HyperPrep Kit and Illumina TruSeq Stranded mRNA Kit. The input RNA amount and number of PCR cycles are indicated. Library yields from an average of three replicates are shown.
Poly(A)-containing mRNA was isolated from Human Universal Reference RNA (Agilent #740000), and libraries were made using the NEBNext Ultra II Directional RNA Kit (plus the NEBNext Poly(A) mRNA Magnetic Isolation Module), Illumina TruSeq Stranded mRNA Kit, Kapa Stranded mRNA-Seq Kit and Kapa mRNA HyperPrep Kit. Libraries were sequenced on an Illumina NextSeq® 500 using paired-end mode (2x76 bp). Reads were mapped to the hg19 reference genome. GC content distribution for each library was calculated using mapped reads. Ultra II Directional RNA libraries had uniform GC content distribution across a range of input amounts, whereas for other kits the GC content distribution changed with different input amounts, indicating the introduction of input-dependent sequence bias.

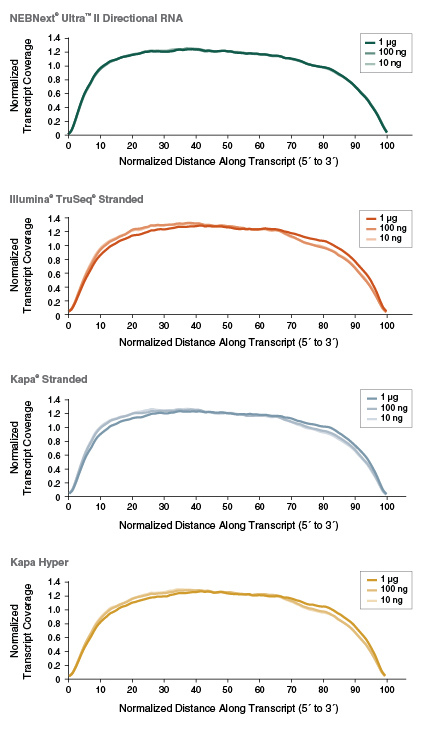

Poly(A)-containing mRNA was isolated from Human Universal Reference RNA (Agilent #740000), and libraries were made using the NEBNext Ultra II Directional RNA Kit (plus the NEBNext Poly(A) mRNA Magnetic Isolation Module), Illumina TruSeq Stranded mRNA Kit, Kapa Stranded mRNA-Seq Kit and Kapa mRNA HyperPrep Kit. Libraries were sequenced on an Illumina NextSeq® 500 using paired-end mode (2x76 bp). This view of the 5′ to 3′coverage of RefSeq transcripts reveals consistent coverage for Ultra II Directional RNA libraries as input RNA is decreased from 1 μg to 10 ng. The changes apparent in other kits result from loss of coverage at the 3′ end of some transcripts.

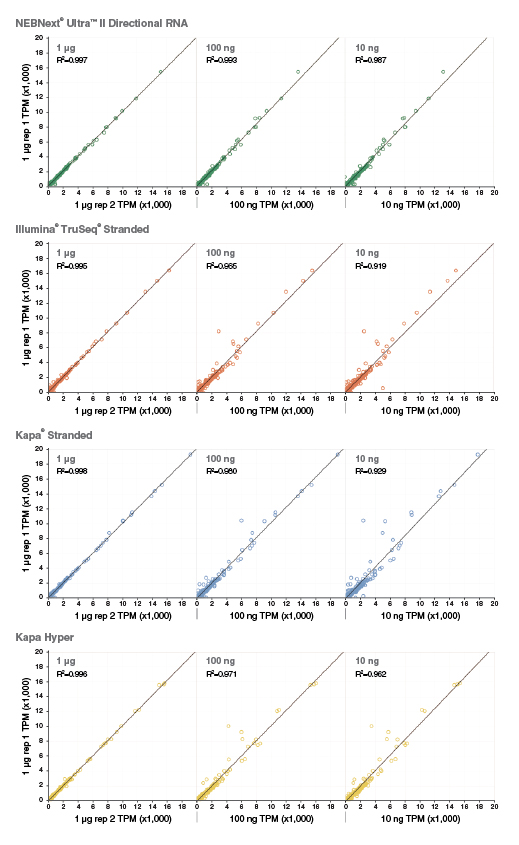

Poly(A)-containing mRNA was isolated from Human Universal Reference RNA (Agilent #740000), and libraries were made using the NEBNext Ultra II Directional RNA Kit (plus the NEBNext Poly(A) mRNA Magnetic Isolation Module), Illumina TruSeq Stranded mRNA Kit, Kapa Stranded mRNA-Seq Kit and Kapa mRNA HyperPrep Kit. Libraries were sequenced on an Illumina NextSeq® 500 using paired-end mode (2x76 bp). Salmon 0.4.0 was used for read mapping and quantification of all GENCODE v25 transcripts. TPM = Transcripts Per Kilobase Million. R2 values for the linear fit are shown. Correlation analysis of the transcripts indicates superior transcript expression correlation between the different inputs for Ultra II Directional RNA libraries.View additional data on library complexity .

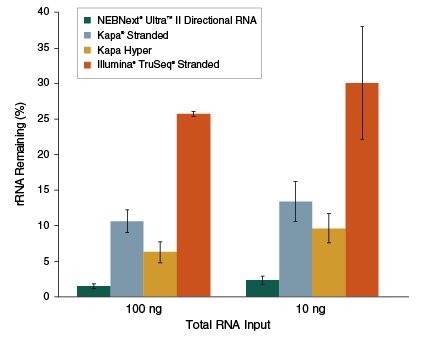

Ribosomal RNA was depleted from human adult normal liver tissue FFPE Total RNA (Biochain # R2234149. RIN 2.5) and libraries were made using NEBNext Ultra II Directional RNA Kit (plus the NEBNext rRNA Depletion Kit (Human/Mouse/Rat)), Kapa Stranded RNA-Seq Kit with RiboErase, Kapa HyperPrep Kit with RiboErase, and Illumina TruSeq Stranded Total RNA Library Prep Kit with Ribo-Zero™ Gold. Libraries were sequenced on an Illumina NextSeq® 500 using paired-end mode (2x76 bp). Read pairs were assessed to be rRNA if they contain 6 or more 32 base matches to 18S, 28S, 5S, 5.8S, 16S or 12S human rRNA sequences (mirabait 4.9). Percent rRNA remaining was calculated by dividing rRNA reads by the total number of reads passing instrument quality filtering. Average percent rRNA remaining is shown for three replicates. The NEBNext rRNA Depletion Ultra II Directional RNA workflow is the most efficient in removing rRNA from total FFPE RNA.

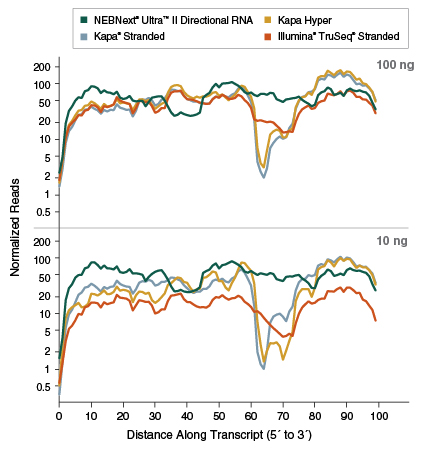

Ribosomal RNA was depleted from human adult normal liver tissue FFPE Total RNA (Biochain # R2234149. RIN 2.5), and libraries were made using NEBNext Ultra II Directional RNA Kit (plus the NEBNext rRNA Depletion Kit (Human/Mouse/Rat)), Illumina TruSeq Stranded Total RNA Library Prep Kit with Ribo-Zero™ Gold, Kapa Stranded RNA-Seq Kit with RiboErase and Kapa HyperPrep Kit with RiboErase. Libraries were sequenced on an Illumina NextSeq® 500 using paired-end mode (2x76 bp). Coverage across the length of this individual transcript (ENST00000625158.1; AP000769.1-201) was assessed by mapping reads directly to the GENCODE v25 transcripts and examining 100 bins along the transcript length. NEBNext Ultra II Directional RNA libraries provided coverage across the entire length of the transcript even as input was decreased from 100 ng to 10 ng.
